Description
"We have sold 22 of these in the last 12 months"

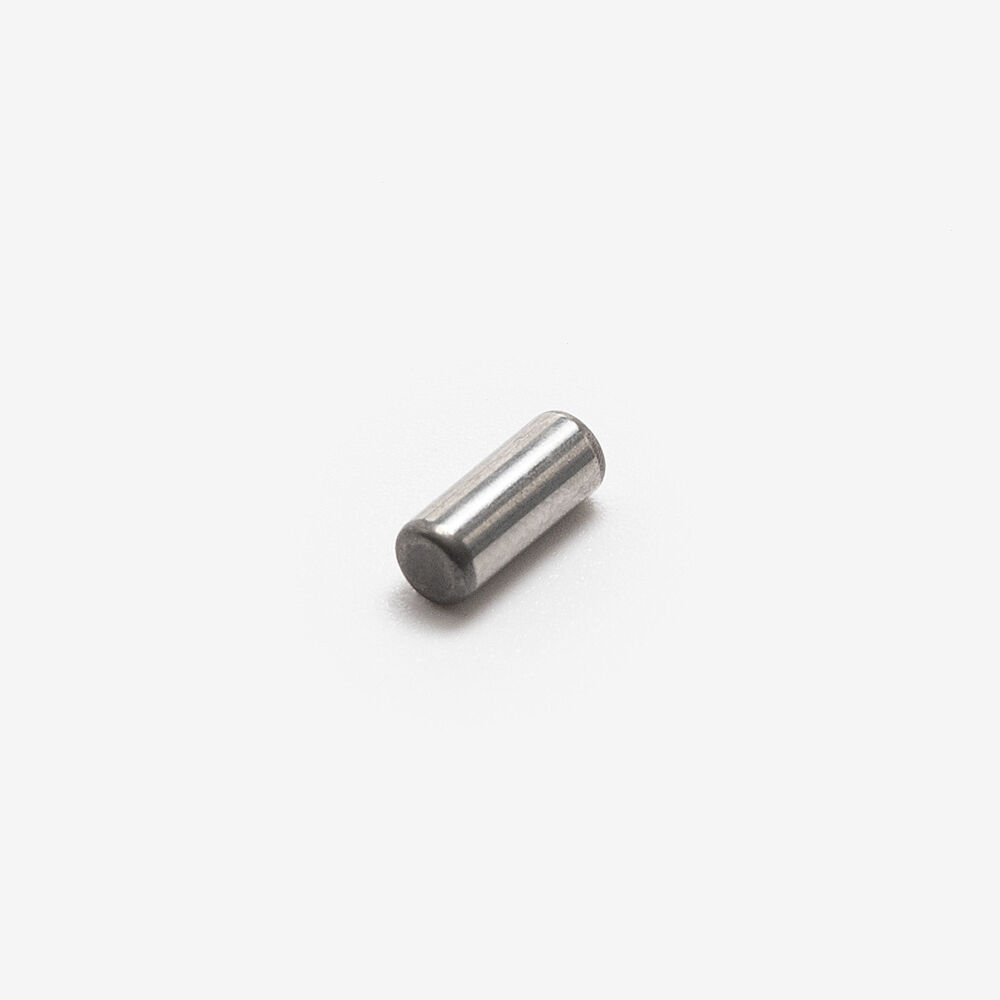

The engine dowel in a motorcycle is a precision alignment pin used to correctly position and secure engine components, such as the engine block and cylinder head, ensuring accurate assembly and maintaining engine integrity.
Product Diagram
FOOTPEG ASSEMBLY diagram - Talaria X3 Mini MX - TL2500MINI
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 4 |  |
Footpeg Spring SPNG307 x 1
|
£2.49 | |
| 5 | |
Washer 16 x 8 x 1.5mm WSH0138 x 1
|
£1.49 | |
| 6 | |
Circlip M8 CCLP029 x 1
|
£1.99 | |
| 8 | |
Dowel Pin size 4 x 10mm for Talaria DWL039 x 1
|
£2.49 | |
| 9 | |
Side Stand Switch for TL45, Sting, Sting R, X3 MX SWSTD057 x 1
|
£17.49 | |
| 10 | |
Side Stand Pin 13 x 42mm BSH180 x 1
|
£6.49 | |
| 11, 12 | |
Side Stand Bolt and Nut for TL45, Sting, Sting R, X3 MX BLTSTD073 x 1
|
£2.99 | |
| 13 | |
Side Stand STDS205 x 1
|
£23.99 | |
| 14 | |
Side Stand Pin 13 x 30mm BSH181 x 1
|
£6.49 | |
| 15 | |
Side Stand Springs for TL45, Sting, Sting R, X3 MX SPNG287 x 1
|
£4.99 | |
| 16 | |
Bolt DIN M8 x 25mm BLT804 x 1
|
£1.99 | |
| 18 | |
Left Footpeg Bracket FPBL042 x 1
|
£20.49 | |
| 19 | |
Right Footpeg Bracket FPBR037 x 1
|
£20.49 | |
| 21 | |
Footpeg Left Assembly Black FPL051 x 1
|
£31.99 | |
| 22 | |
Footpeg Right Assembly Black FPR044 x 1
|
£31.99 |
More Product Diagrams
This part appears on 8 other diagrams
Compatibility
| Manufacturer | Model |
|---|---|
| Talaria | MX4 Sting R Road Legal [TL50] |
| MX4 Sting R [TL4000] | |
| Sting Offroad [TL3000] | |
| Sting Pro L1e Road legal [TL55] | |
| Sting R [TL60] | |
| Sting Road Legal [TL45] | |
| X3 MX [TL2500] | |
| X3 Road Legal [TL25] | |
