Description
"You should buy this Rear Sprocket"

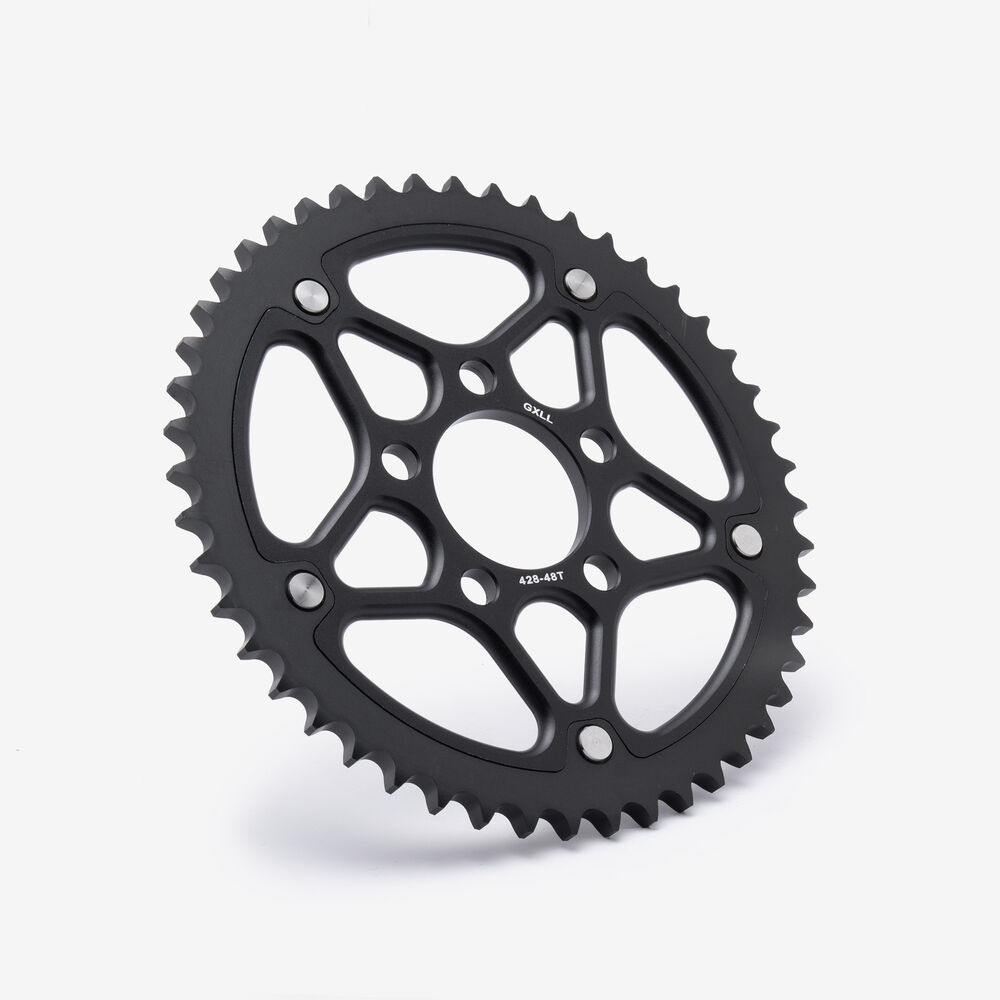

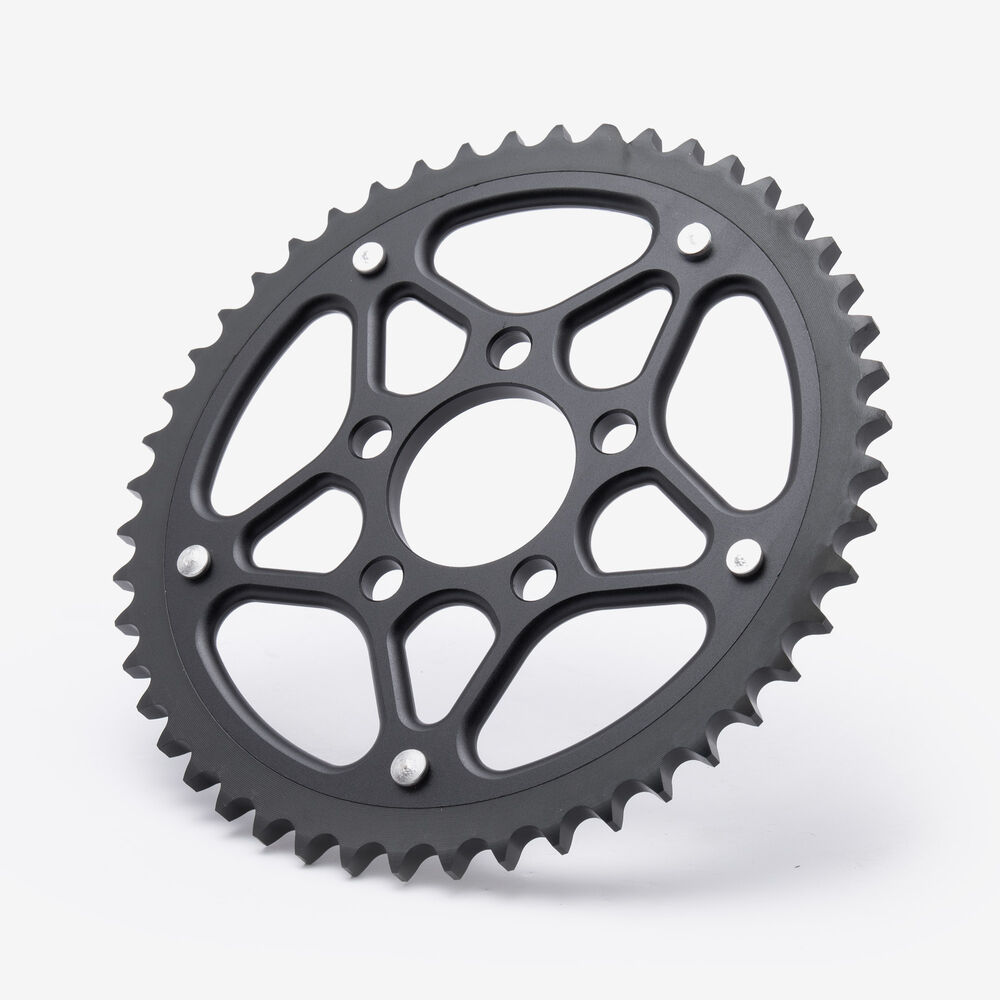

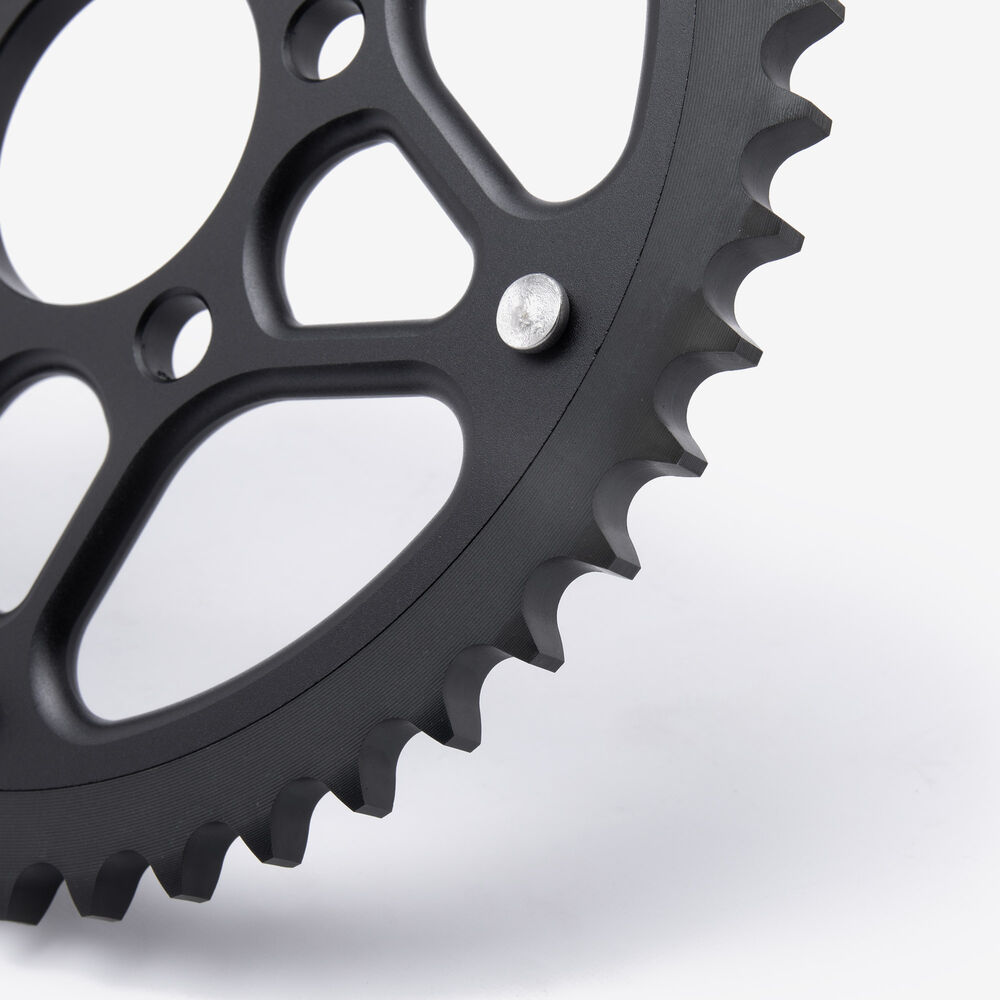

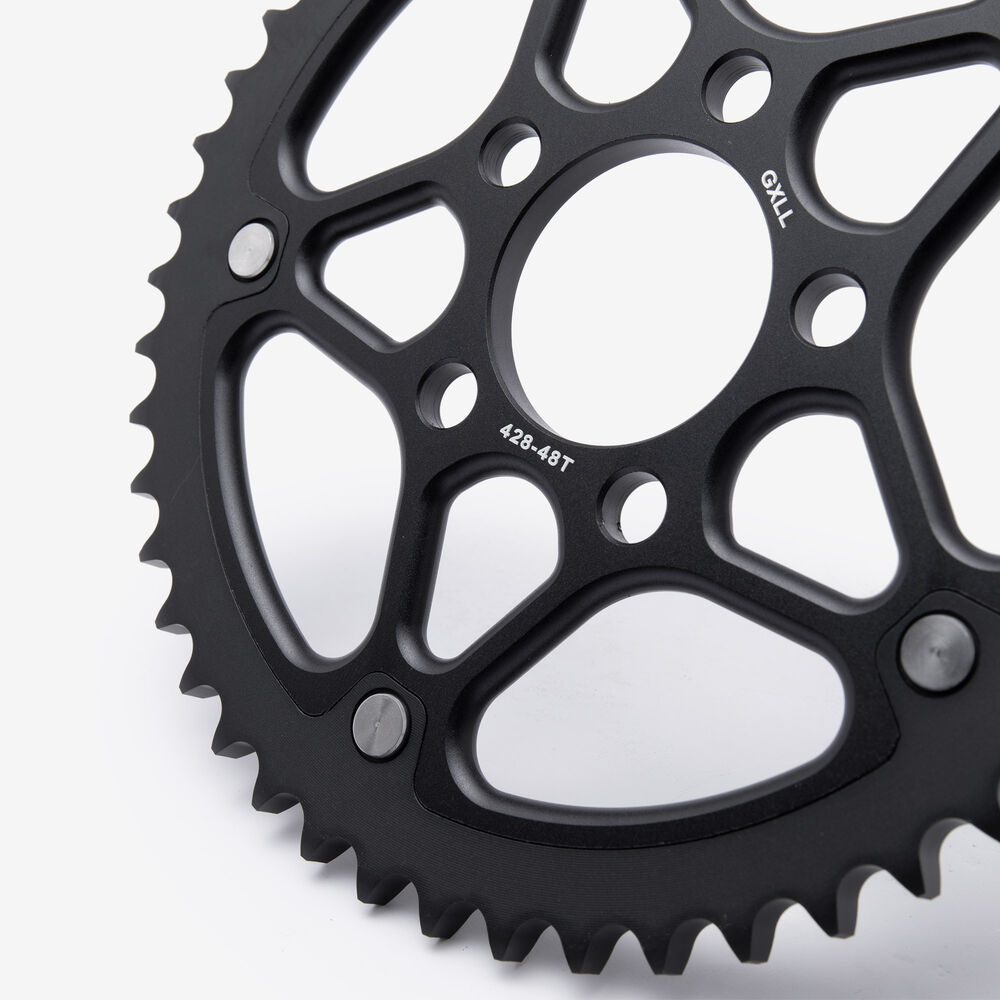

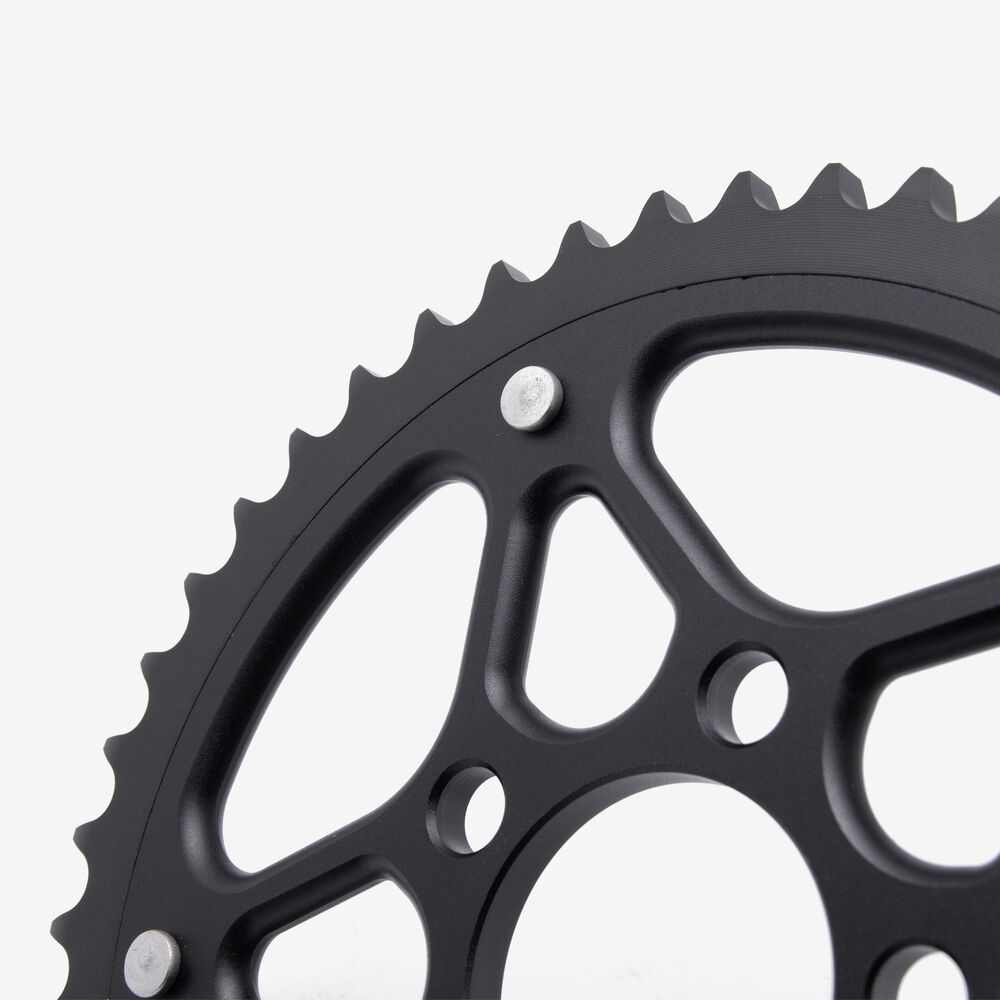

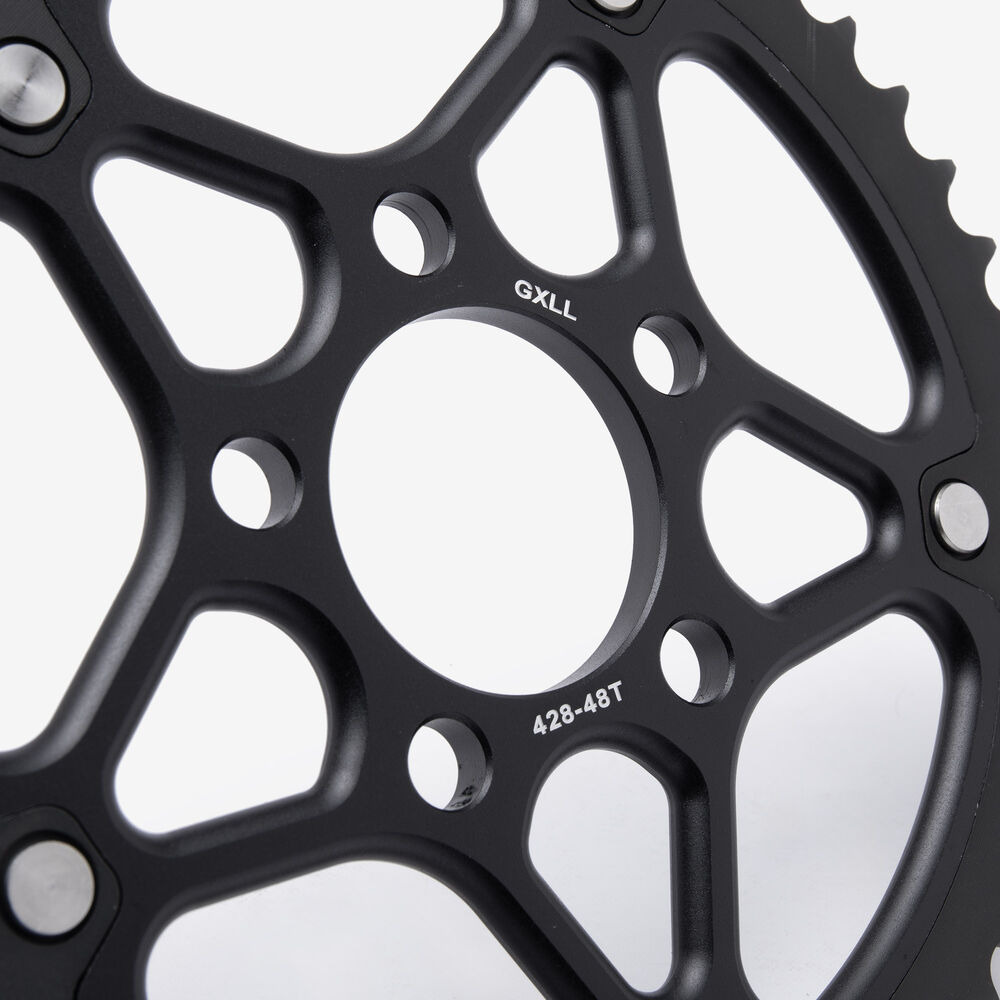

The rear sprocket on a motorcycle is a key component of the drivetrain system, located on the rear wheel hub. It works in conjunction with the front sprocket and the chain to transmit power from the engine to the rear wheel, propelling the motorcycle forward. The rear sprocket features a series of teeth that mesh with the chain, and its size affects the motorcycle’s gearing and performance characteristics. A larger rear sprocket increases torque and acceleration, while a smaller one improves top speed and fuel efficiency. Proper maintenance and alignment of the rear sprocket are essential for optimal drivetrain performance and safety.
Product Diagram
REAR WHEEL ASSY diagram - Talaria Sting Pro L1e Road legal - TL55
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 |  |
Rear Wheel Rim 1.60-19 WHLR252 x 1
|
||
| 2 | |
Front / Rear Spokes 221 x 3.2mm 36pcs WHLSPK037 x 1
|
||
| 4 | |
Rear Wheel Hub BRH051 x 1
|
||
| 5 | |
Wheel Hub Oil Seal 37 x 25 x 7mm OLSL143 x 1
|
||
| 6 | |
Single Wheel Bearing 6202 2RS 15 x 35 x 11mm BRG108 x 1
|
||
| 9 | |
Rear Sprocket 428-48T SPKR156 x 1
|
||
| 11 | |
Rear Left Wheel Step Bushing BSH202 x 1
|
||
| 12 | |
Chain Adjuster Washer CHNAW016 x 1
|
||
| 13 | |
Nut M12 x 1.25mm NUT215 x 1
|
||
| 14 | |
Rear Inner Tube 275/300-19 for TL45, Sting, Sting R INT033 x 1
|
||
| 15 | |
Wheel Rim Band for TL45, Sting, Sting R WHLTP012 x 1
|
||
| 16 | |
Front / Rear Brake Disc BRDF151 x 1
|
||
| 17 | |
Rear Brake Disc Bolt GB/T818 M6 x 12mm BLT833 x 1
|
||
| 18 | |
Rear Right Wheel Step Bushing BSH203 x 1
|
||
| 19 | |
Rear Caliper Mounting Bracket BRCBR017 x 1
|
||
| 20 | |
Spindle Rear M5 x 204mm SPND177 x 1
|
More Product Diagrams
This part appears on 1 other diagram
Compatibility
| Manufacturer | Model |
|---|---|
| Talaria | MX5 (Sting Pro) [TL5500] |
| Sting Pro L1e Road legal [TL55] | |
