Description
"Another great Front Sprocket"
The front sprocket, also known as the countershaft sprocket, is a key component in a motorcycle's drivetrain. Located at the output shaft of the engine or transmission, it engages with the motorcycle's chain to transmit power from the engine to the rear wheel. The front sprocket works in conjunction with the rear sprocket and chain to control the motorcycle’s gearing, affecting acceleration, top speed, and overall performance. Its size and number of teeth influence the bike’s torque and speed characteristics.
Product Diagram
MOTOR ASSEMBLY diagram - Talaria JR-16 - ET01P
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 |  |
Motor 24V MTR048 x 1
|
£370.99 | |
| 2 | |
Hall Effect Sensor HEFS009 x 1
|
£46.99 | |
| 3 | |
Bolt M6 x 45mm BLT1163 x 1
|
£1.99 | Soon |
| 4 | |
Spacer 28 x 10.5 x 6.5mm SPCR340 x 1
|
£2.49 | Soon |
| 5 | |
Bolt M6 x 20mm BLT1065 x 1
|
£1.99 | |
| 6 | |
Washer 16 x 6 x 1mm WSH0097 x 1
|
£1.99 | |
| 8 | |
Bolt M5 x 14mm BLT1066 x 1
|
£1.99 | |
| 9 | |
Bolt M6 x 12mm BLT1067 x 1
|
£1.99 | |
| 10 | |
Motor Bracket BRCKT492 x 1
|
£24.99 | |
| 11 | |
Woodruff Key 4 x 4 x 8mm WDKY033 x 1
|
£1.99 | |
| 12 | |

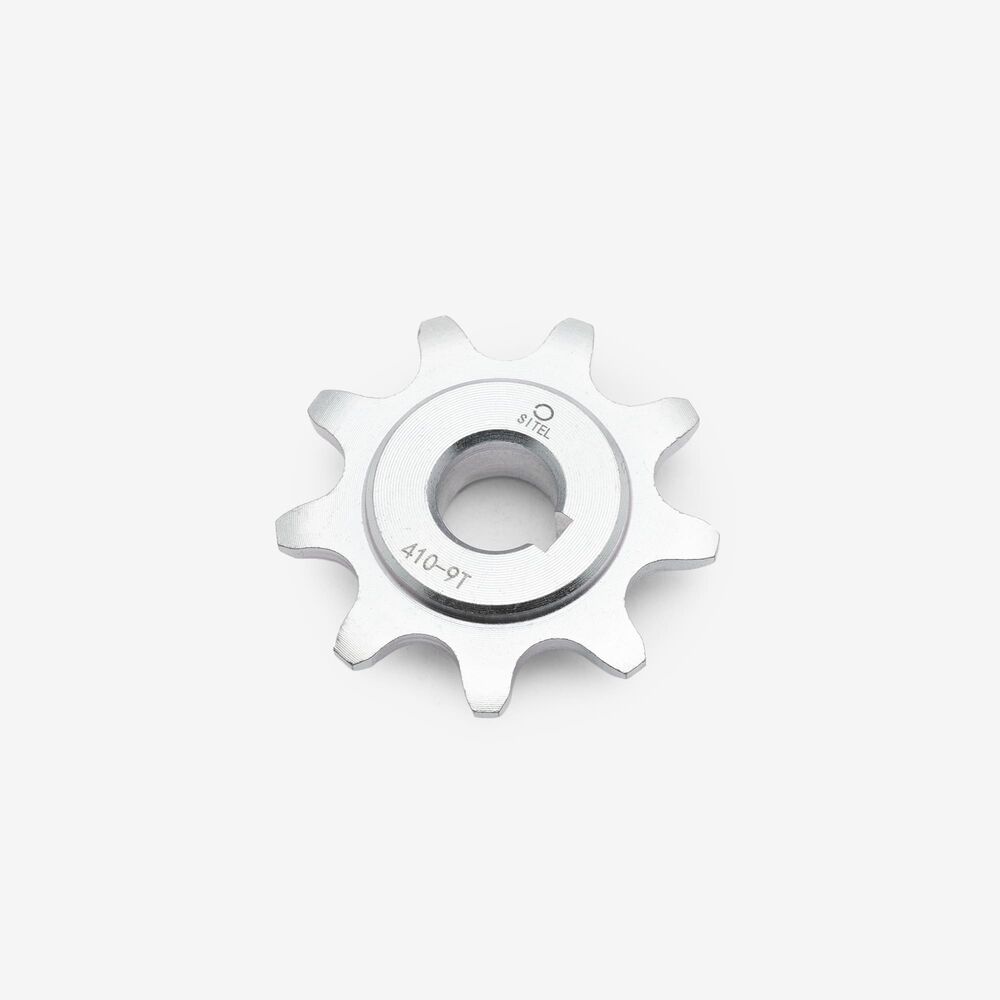

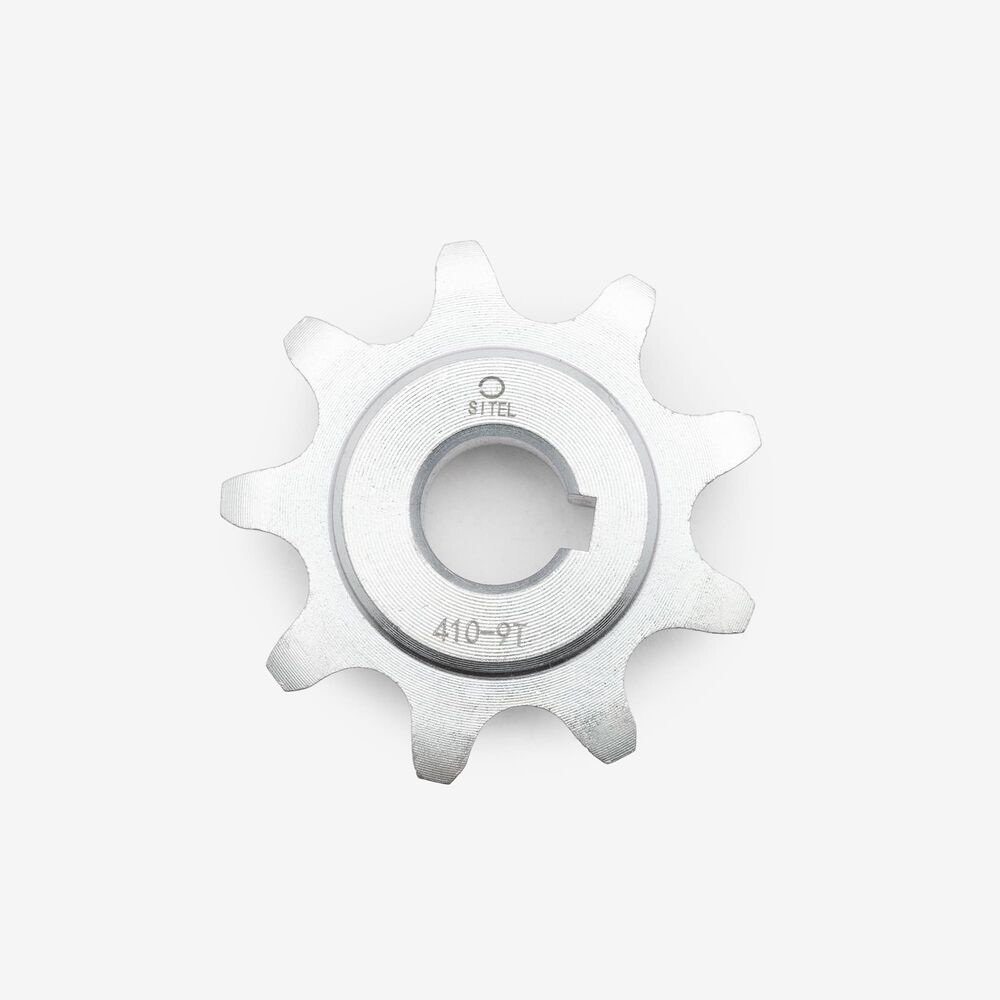

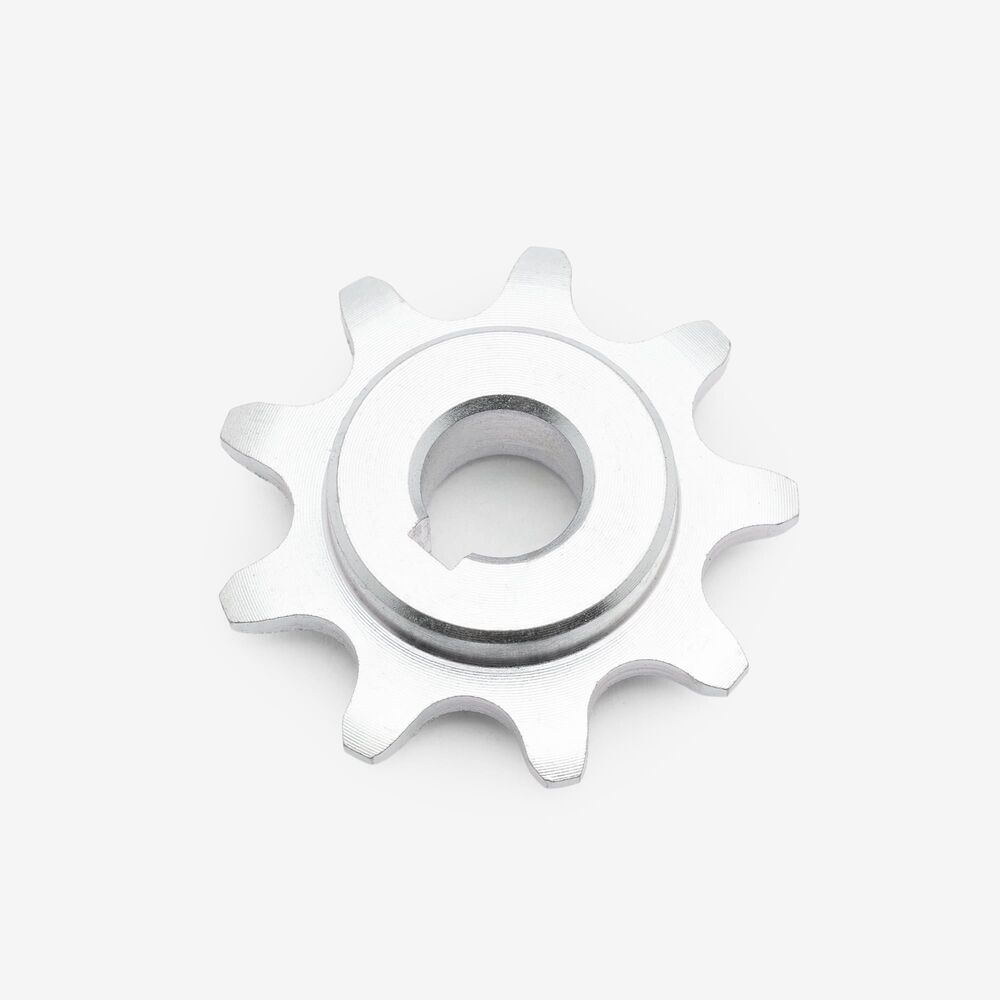

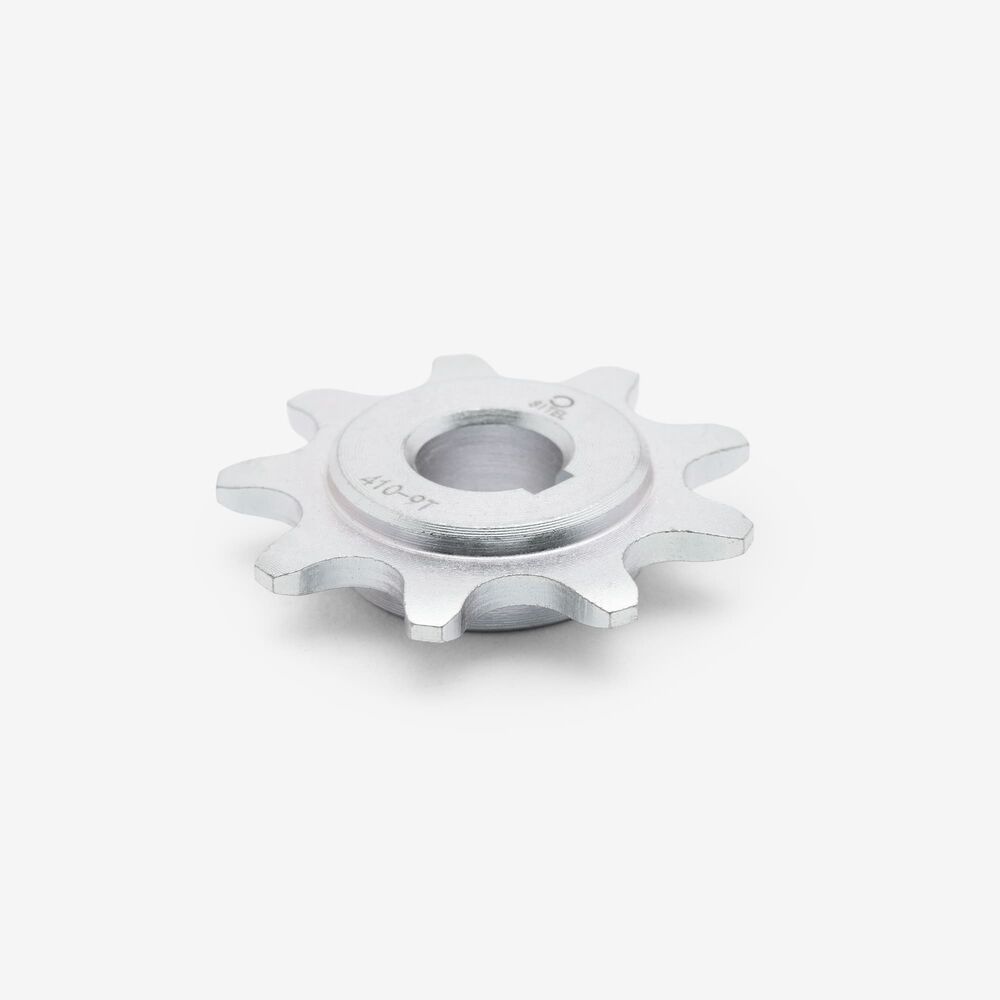

Front Sprocket 410-9T SPKF080 x 1
|
£14.49 | |
| 13 | |
Hexagon Flange Lock Nut (GB/T 6187.1) M8 x 1.25mm NUT214 x 1
|
£2.49 | |
| 14 | |
Standard Chain 411-66 CHN123 x 1
|
£17.49 |
More Product Diagrams
This part appears on 1 other diagram
Compatibility
| Manufacturer | Model |
|---|---|
| Talaria | JR-12 [ET01] |
| JR-16 [ET01P] | |
