Description
"We have sold 41 of these in the last 12 months"

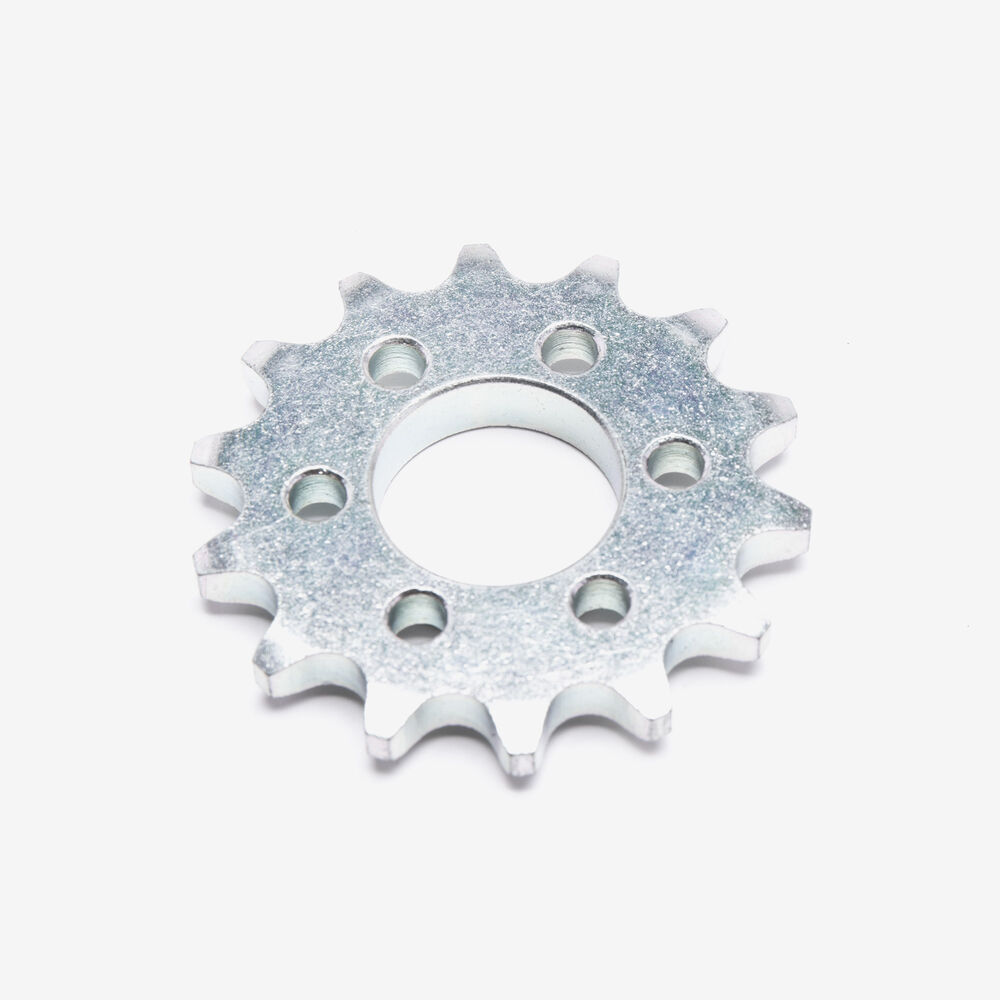

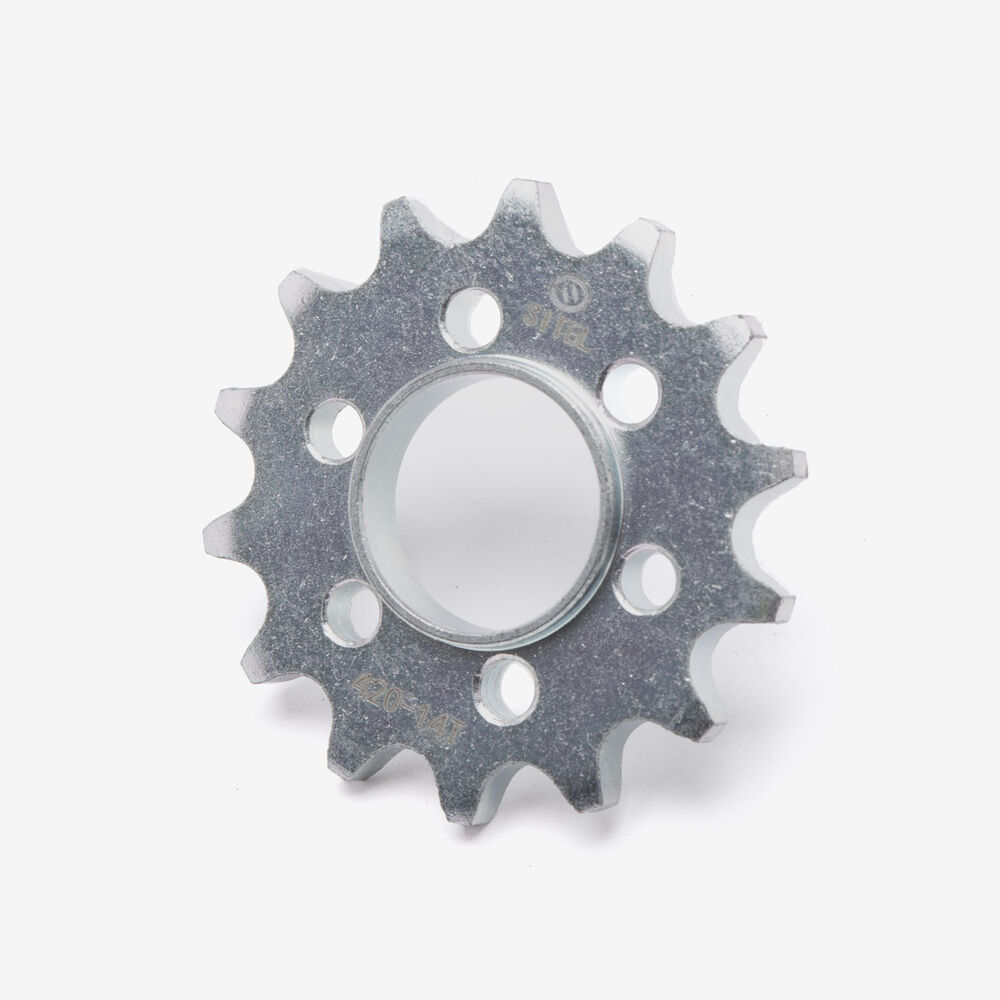

The front sprocket, also known as the countershaft sprocket, is a key component in a motorcycle's drivetrain. Located at the output shaft of the engine or transmission, it engages with the motorcycle's chain to transmit power from the engine to the rear wheel. The front sprocket works in conjunction with the rear sprocket and chain to control the motorcycle’s gearing, affecting acceleration, top speed, and overall performance. Its size and number of teeth influence the bike’s torque and speed characteristics.
Product Diagram

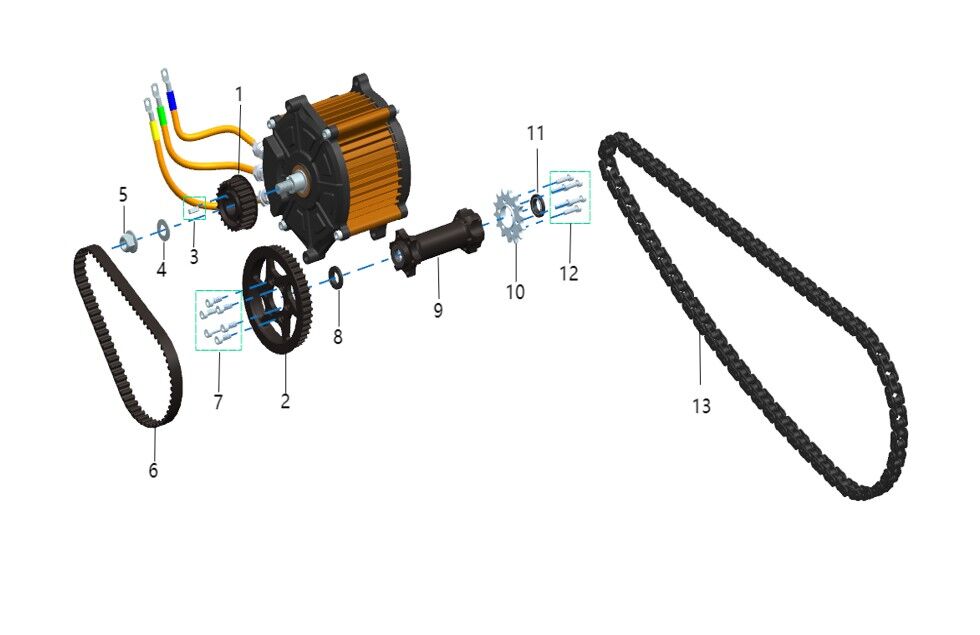

JACKSHAFT PULLEY ASSY diagram - Talaria X3 Mini MX - TL2500MINI
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 |  |
Drive Pulley 23T DRVP008 x 1
|
£79.99 | |
| 2 | |
Jackshaft Belt Pulley 46T Black VARP009 x 1
|
£38.99 | |
| 3 | |
Woodruff key 5 x 5 x 16mm WDKY030 x 1
|
£4.99 | |
| 4 | |
Washer GB/T 1972 25 x 3mm SPNG295 x 1
|
£2.49 | |
| 5 | |
Nut M12 x 1.25mm NUT215 x 1
|
£2.49 | |
| 6 | |
Drive belt HTD-560-8m-16 DB081 x 1
|
£50.99 | |
| 7 | |
Pulley Bolt M6 x 14mm BLT886 x 1
|
£0.99 | |
| 8 | |
Oil Seal 15 x 26 x 6mm 15 x 26 x 6mm OLSL126 x 1
|
£3.49 | |
| 9 | |
Pulley Hub 54 x 124.5 x 50mm DRVP006 x 1
|
£79.99 | |
| 10 | |
Front Sprocket 420-14T SPKF073 x 1
|
£15.99 | |
| 11 | |
Oil Seal 15 x 24 x 7mm 15 x 24 x 7mm OLSL127 x 1
|
£3.49 | |
| 12 | |
Pulley Bolt M5 x 20mm BLT887 x 1
|
£0.99 |
More Product Diagrams
Compatibility
| Manufacturer | Model |
|---|---|
| Talaria | X3 MX [TL2500] |
| X3 Mini MX [TL2500MINI] | |
| X3 Pro MX [TL2500-V2] | |
| X3 Pro Road Legal [TL25-V2] | |
| X3 Road Legal [TL25] | |
