Description

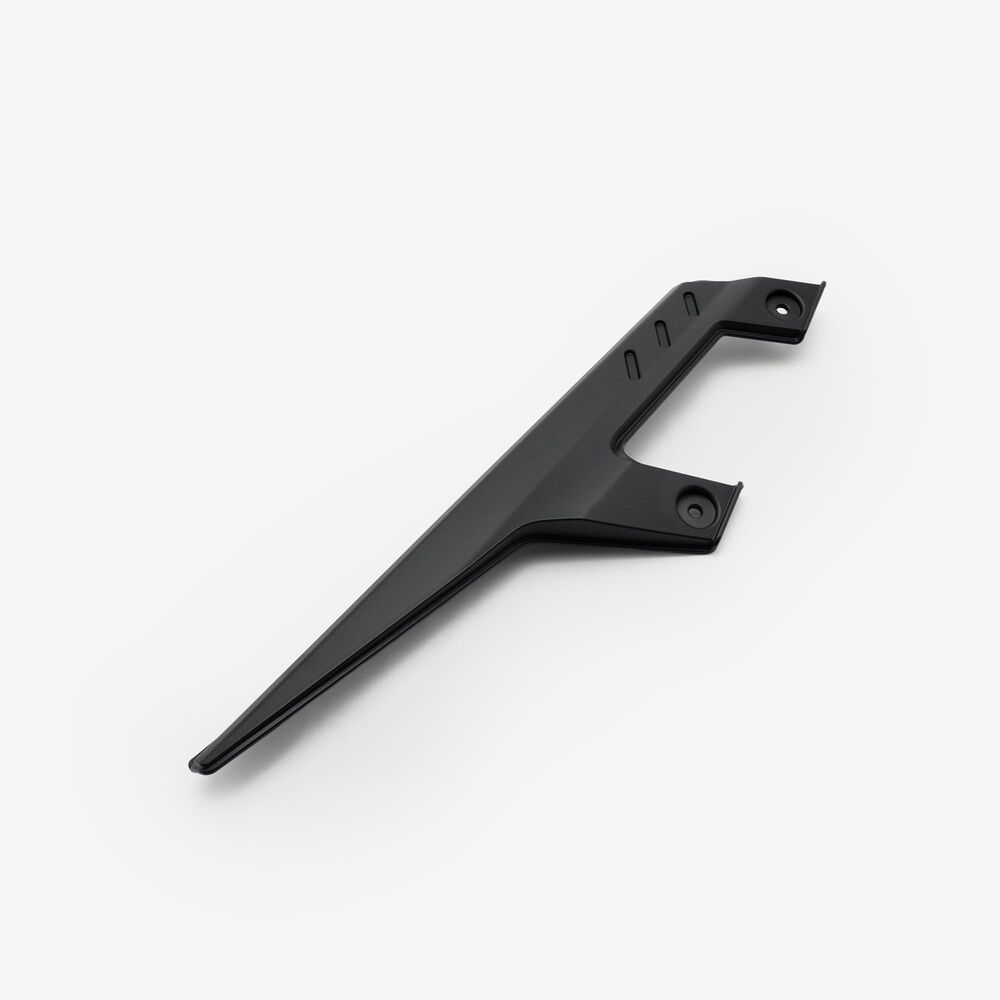

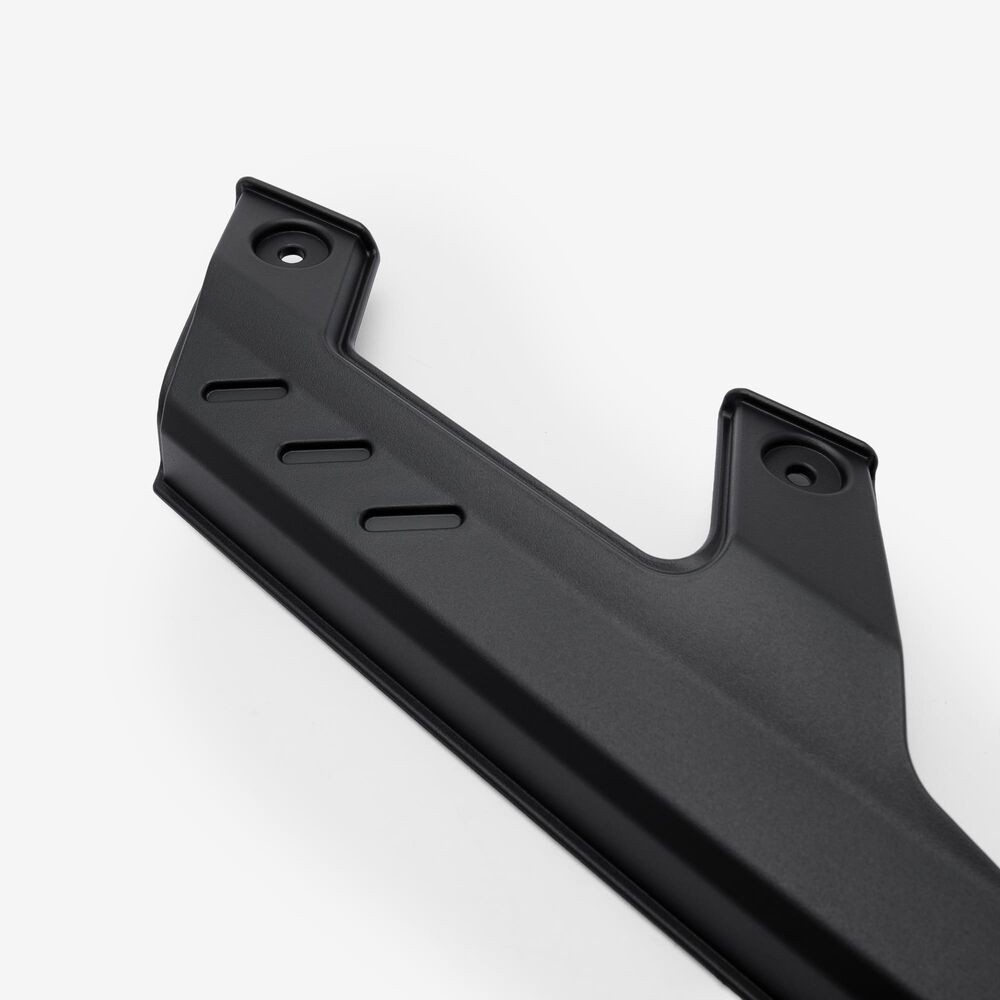

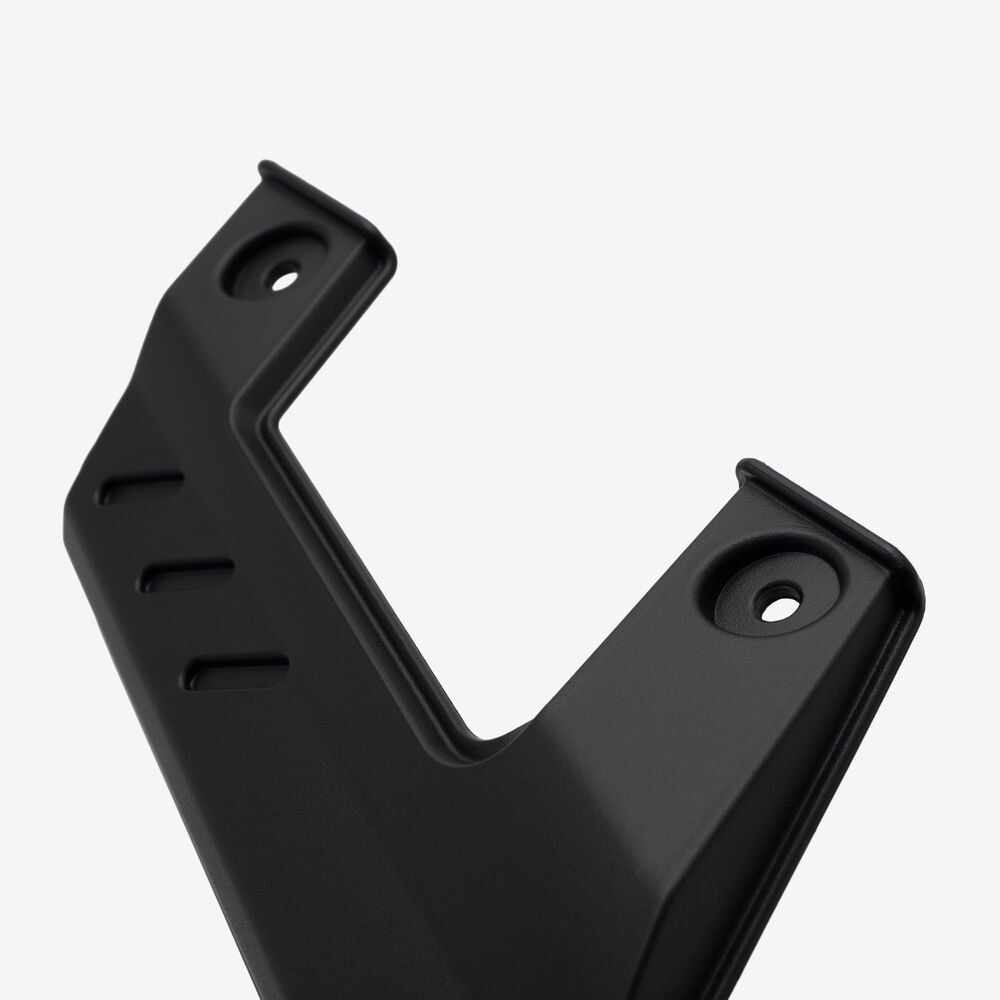

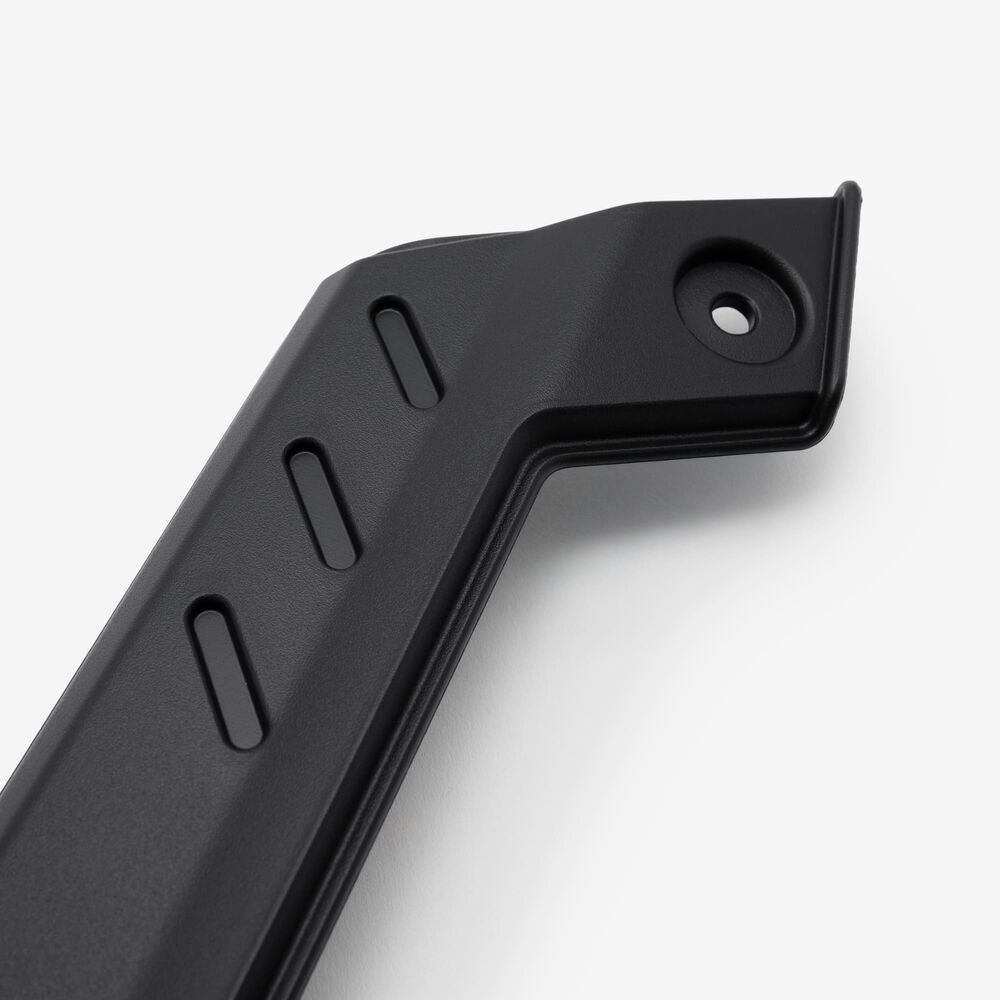

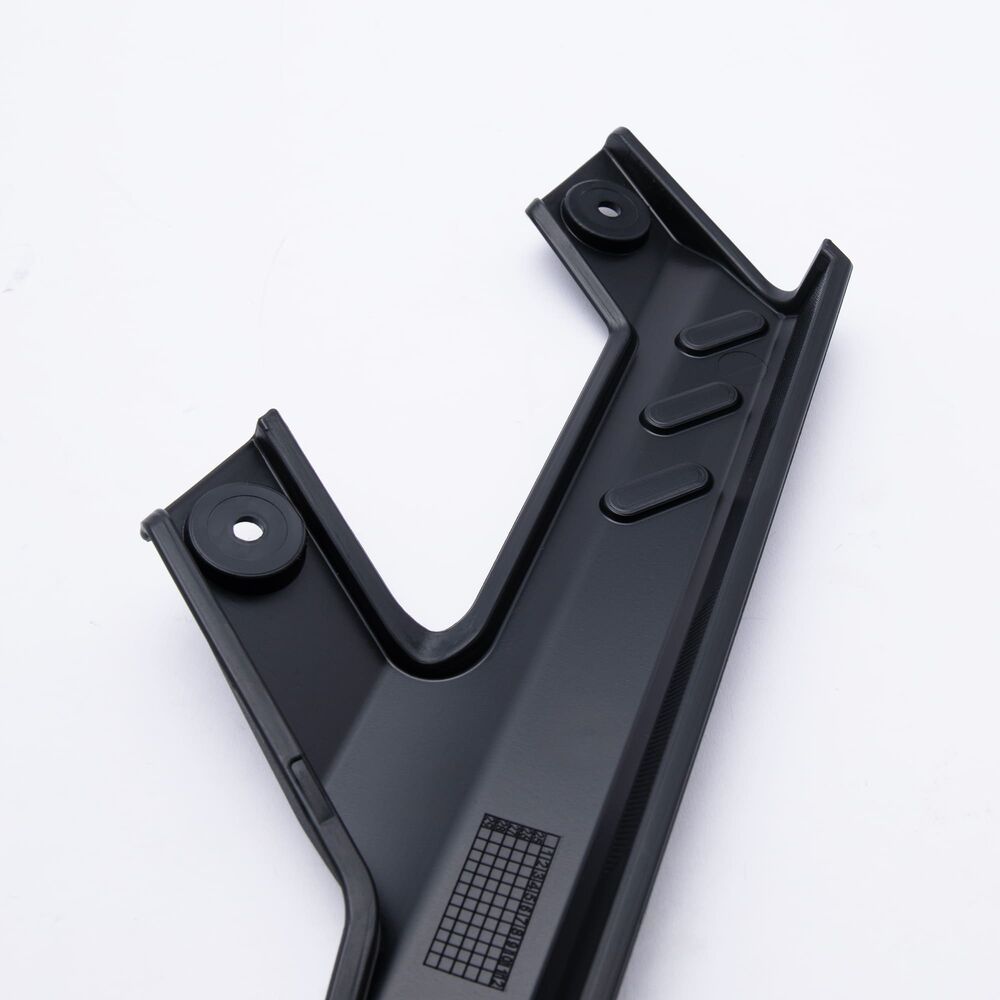

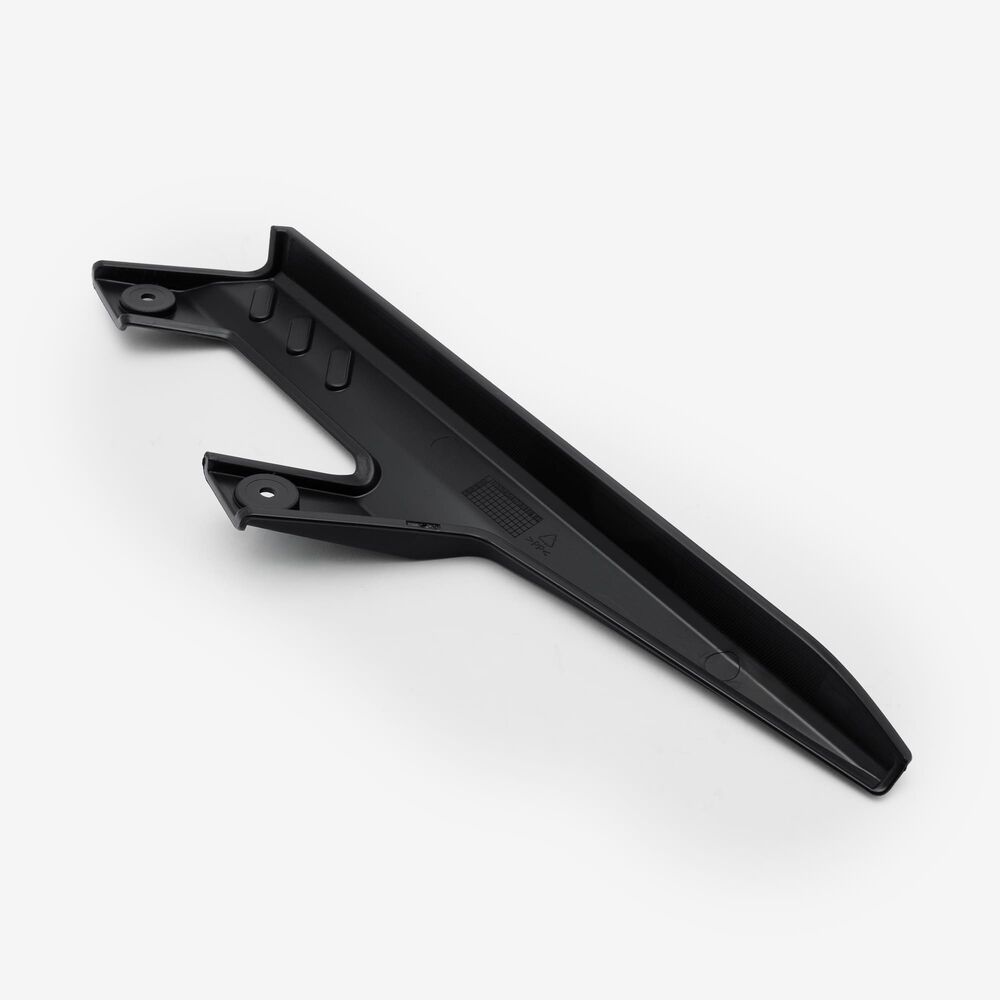

"You should buy this Upper Chain Guard"
The chain guard in a motorcycle is a protective cover that shields the chain from dirt, debris, and damage. It helps to prevent accidental contact with the chain, which could cause injury or affect performance, while also keeping the chain and surrounding components clean and functioning smoothly.
Product Diagram
SWINGARM ASSEMBLY diagram - Talaria Komodo L3e Road Legal - TL65
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 |  |
Swingarm Spindle SWNGS063 x 1
|
||
| 2 | |
Swingarm Bush BSH250 x 1
|
||
| 3 | |
Oil Seal 32 X 25x 7mm OLSL175 x 1
|
||
| 4 | |
Bearing HK2010 26 x 20 x 10mm BRG249 x 1
|
||
| 5 | |
Spacer 42 x 20 x 15mm SPCR323 x 1
|
||
| 6 | |
Spacer 31.5 x 20 x 1mm SPCR326 x 1
|
||
| 7 | |
Spring Washer 28 x 14 x 1mm WSH0137 x 1
|
||
| 8 | |
Nut M14 x 1.5mm NUT254 x 1
|
||
| 9 | |
Chain Guard CHNG081 x 1
|
||
| 11 | |
Bolt M6 x 12mm BLT1023 x 1
|
||
| 12 | |
Upper Chain Guard CHNG082 x 1
|
||
| 13 | |
Rear Brake Disc Bolt GB/T818 M6 x 12mm BLT833 x 1
|
||
| 14 | |
Brake Hose Clip HSCLP137 x 1
|
||
| 15 | |
Lower Chain Guard CHNG083 x 1
|
||
| 16 | |
Bolt M6 x 20mm BLT1028 x 1
|
||
| 17 | |
Chain Tensioner Bolt BLT1044 x 1
|
||
| 19 | |
Swingarm Black SWNG133 x 1
|
||
| 20 | |
Decorative Cover Black PNLDC092 x 1
|
More Product Diagrams
This part appears on 1 other diagram
Compatibility
| Manufacturer | Model |
|---|---|
| Talaria | Komodo L3e [TL65] |
| Komodo [TL6000] | |
