Description
"In the category of EV Motors and Motor Controllers, EV Motor"

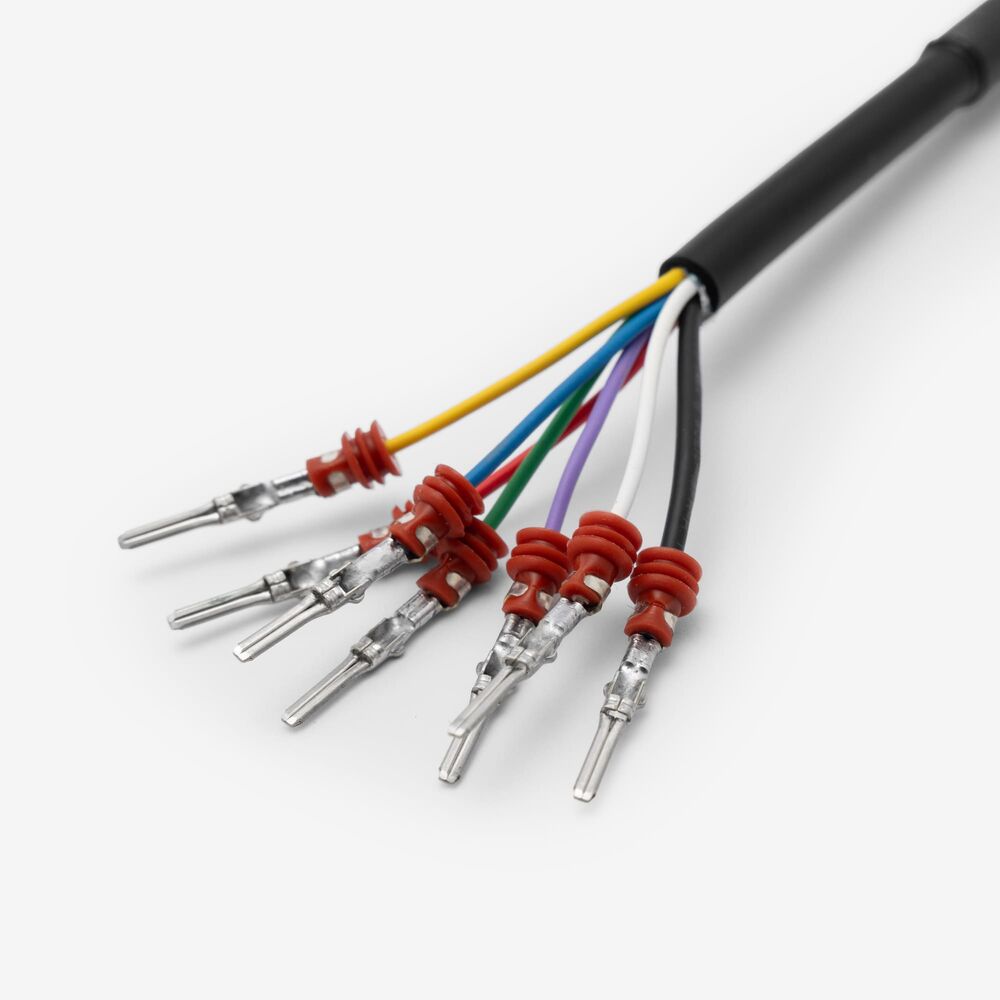

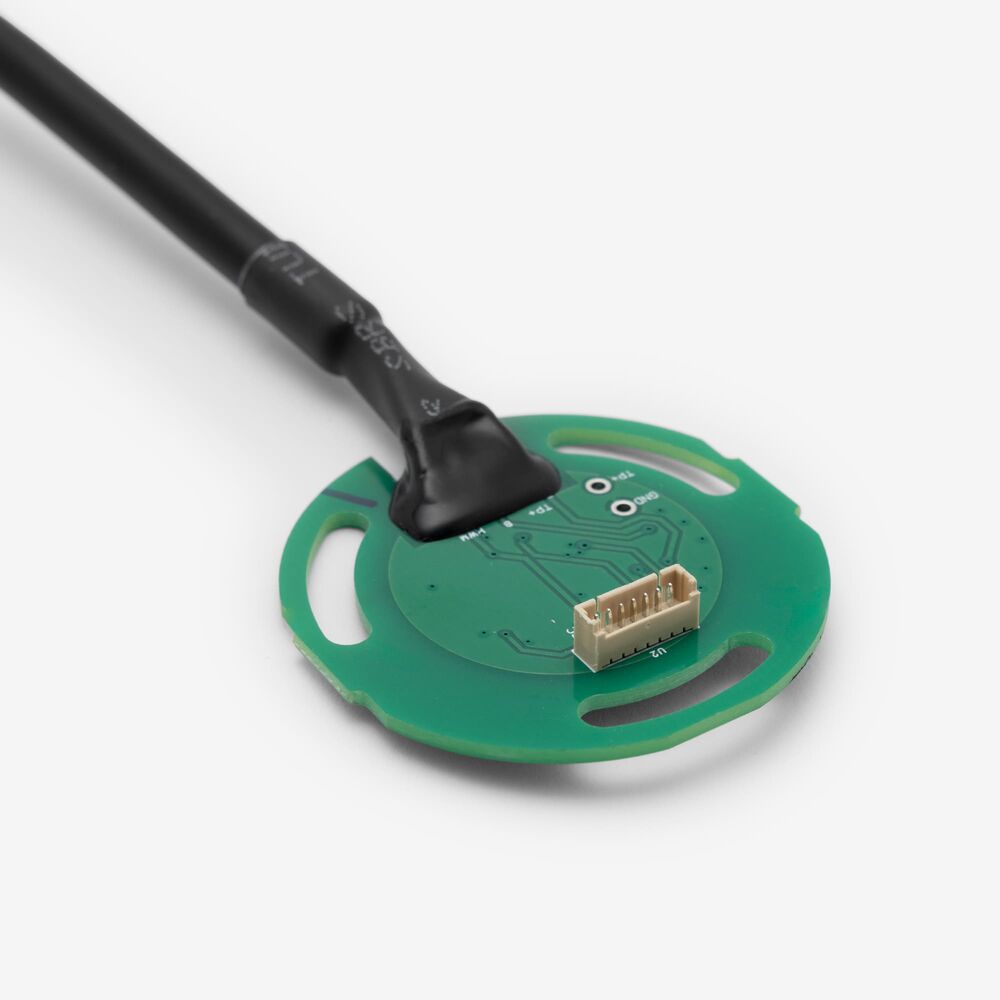

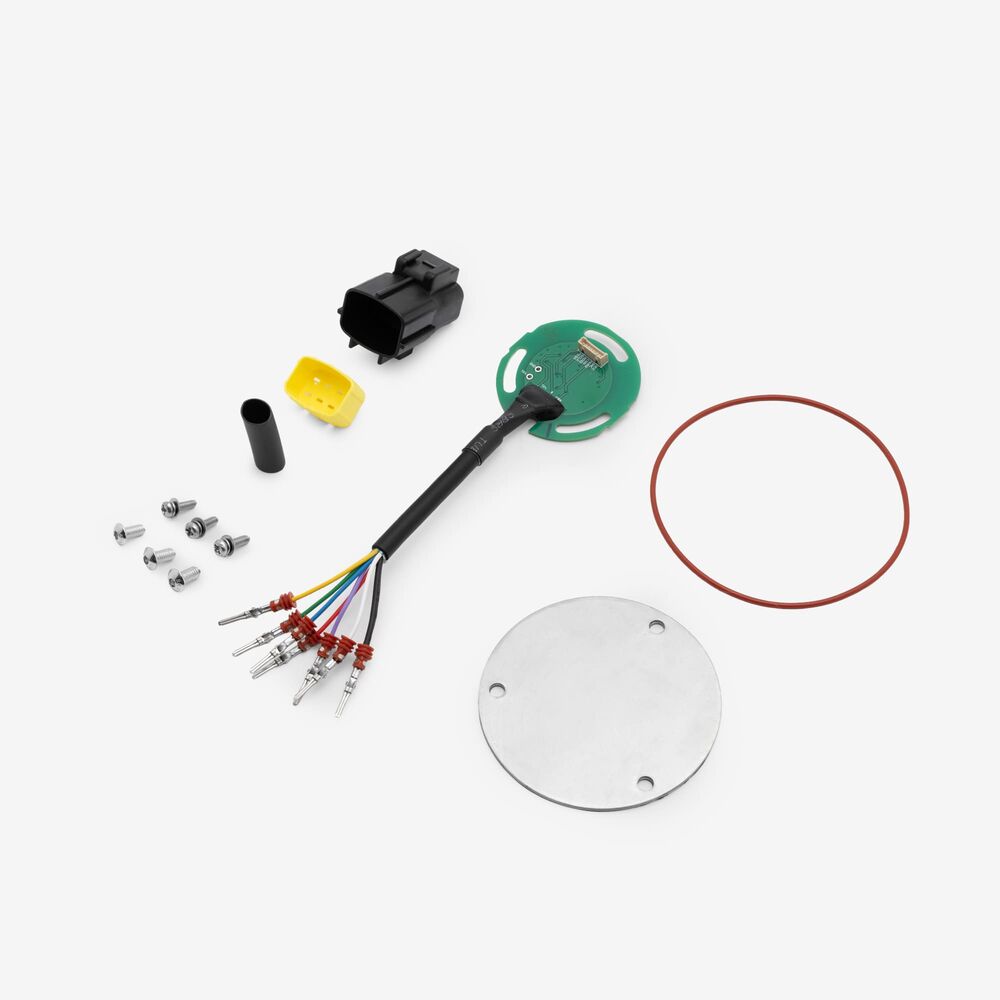

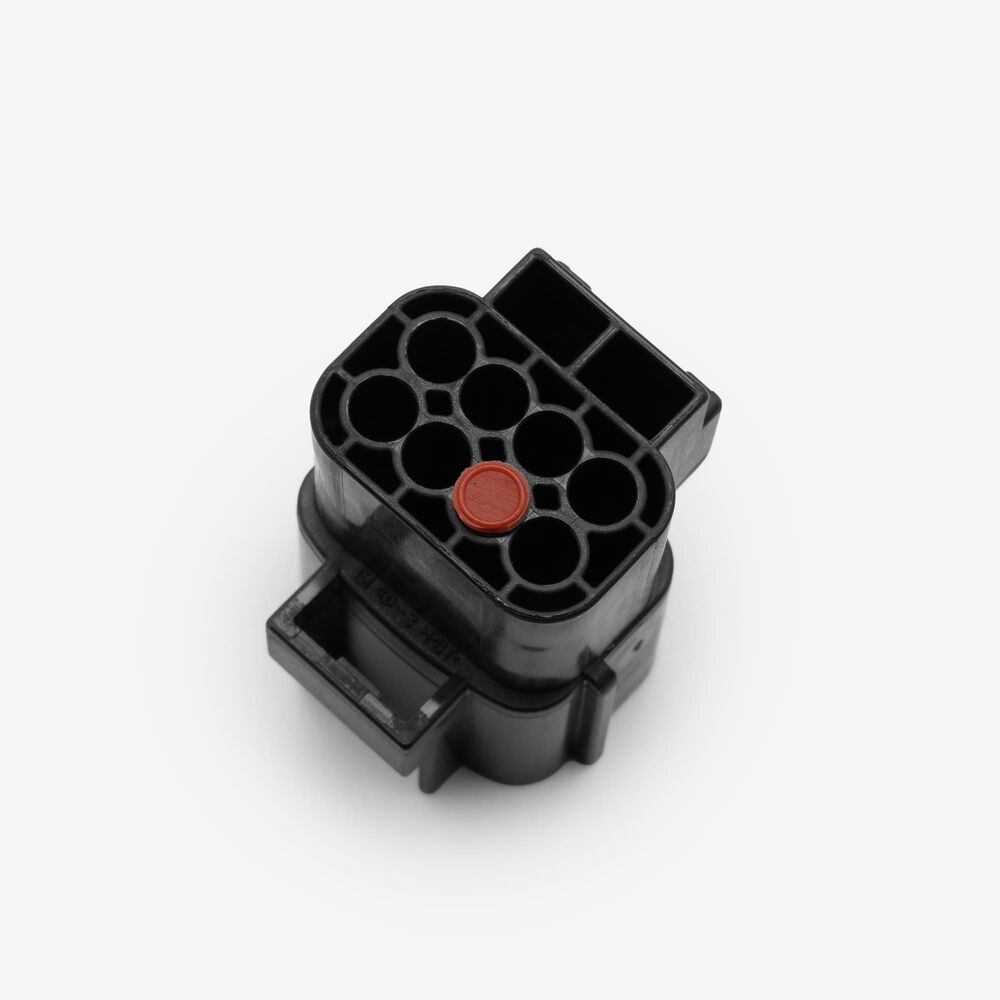

A Hall effect sensor on a motorcycle is an electronic component that detects the presence or changes in a magnetic field. It is commonly used in systems like the ignition, speedometer, or motor controller to monitor rotational speed, position, or throttle inputs. By converting the magnetic field into an electrical signal, the sensor provides accurate data to the bike’s ECU (Electronic Control Unit), which can then adjust performance, optimize fuel/energy consumption, or control other functions. Hall effect sensors are durable and reliable, working well in harsh environments.
Product Diagram
MOTOR ASSEMBLY diagram - Talaria JR-16 - ET01P
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 |  |
Motor 24V MTR048 x 1
|
£370.99 | |
| 2 | |
Hall Effect Sensor HEFS009 x 1
|
£46.99 | |
| 3 | |
Bolt M6 x 45mm BLT1163 x 1
|
£1.99 | Soon |
| 4 | |
Spacer 28 x 10.5 x 6.5mm SPCR340 x 1
|
£2.49 | Soon |
| 5 | |
Bolt M6 x 20mm BLT1065 x 1
|
£1.99 | |
| 6 | |
Washer 16 x 6 x 1mm WSH0097 x 1
|
£1.99 | |
| 8 | |
Bolt M5 x 14mm BLT1066 x 1
|
£1.99 | |
| 9 | |
Bolt M6 x 12mm BLT1067 x 1
|
£1.99 | |
| 10 | |
Motor Bracket BRCKT492 x 1
|
£24.99 | |
| 11 | |
Woodruff Key 4 x 4 x 8mm WDKY033 x 1
|
£1.99 | |
| 12 | |
Front Sprocket 410-9T SPKF080 x 1
|
£14.49 | |
| 13 | |
Hexagon Flange Lock Nut (GB/T 6187.1) M8 x 1.25mm NUT214 x 1
|
£2.49 | |
| 14 | |
Standard Chain 411-66 CHN123 x 1
|
£17.49 |
More Product Diagrams
This part appears on 1 other diagram
Compatibility
| Manufacturer | Model |
|---|---|
| Talaria | JR-12 [ET01] |
| JR-16 [ET01P] | |
