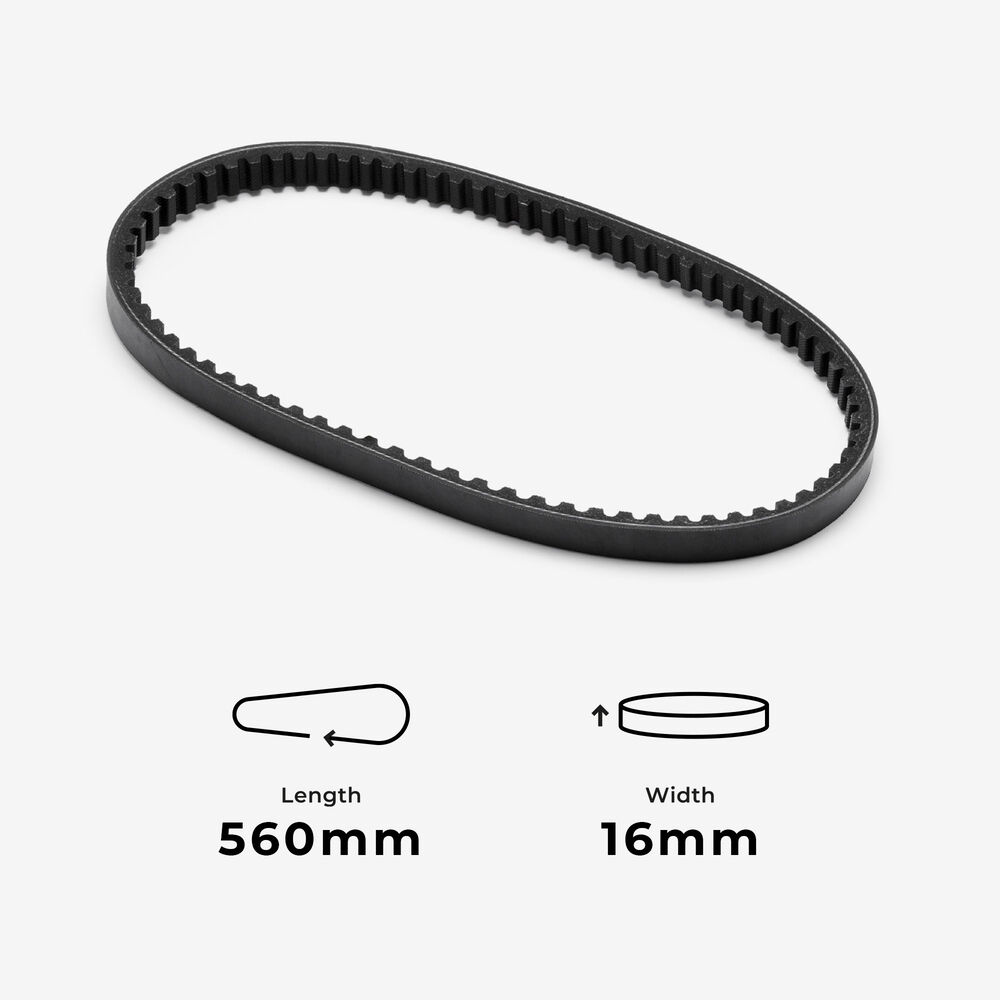

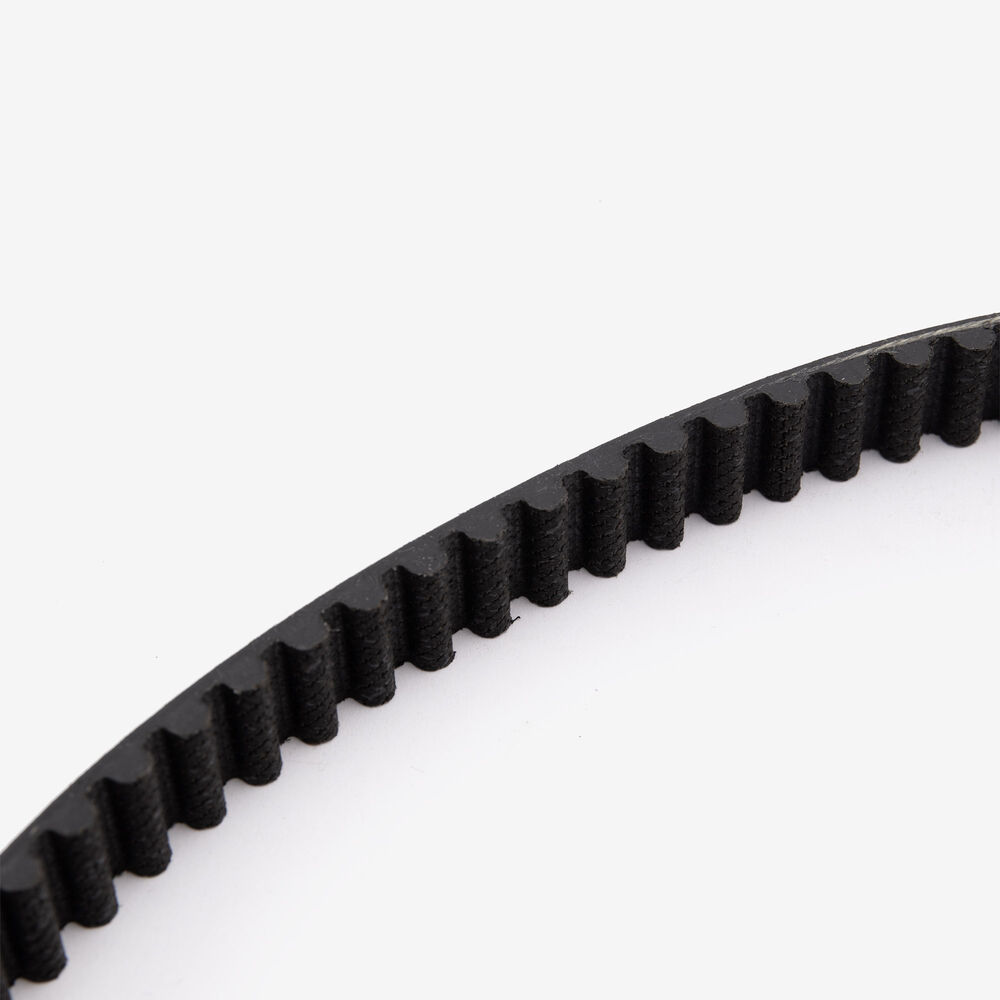

Drive belt HTD-560-8m-16
DB081
Description
"In the category of Drive Belts, Drive Belts"
The drive belt in a CVT (Continuously Variable Transmission) system transfers power from the engine to the transmission pulleys, allowing for smooth and variable gear ratios. It adjusts automatically based on engine speed and load, providing seamless acceleration and optimal performance.
Product Diagrams
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 | |
Nut M12 x 1.25mm NUT215 x 1
|
||
| 2 | |
Washer GB/T 1972 25 x 3mm SPNG295 x 1
|
||
| 3 | |
Woodruff key 5 x 5 x 16mm WDKY030 x 1
|
||
| 4 | |
Drive Pulley 23T DRVP008 x 1
|
||
| 5 | |
Bolt M8 x 45mm BLT855 x 1
|
||
| 6 | |
Motor Bushing 15 x 7.25mm BSH185 x 1
|
||
| 7 | |

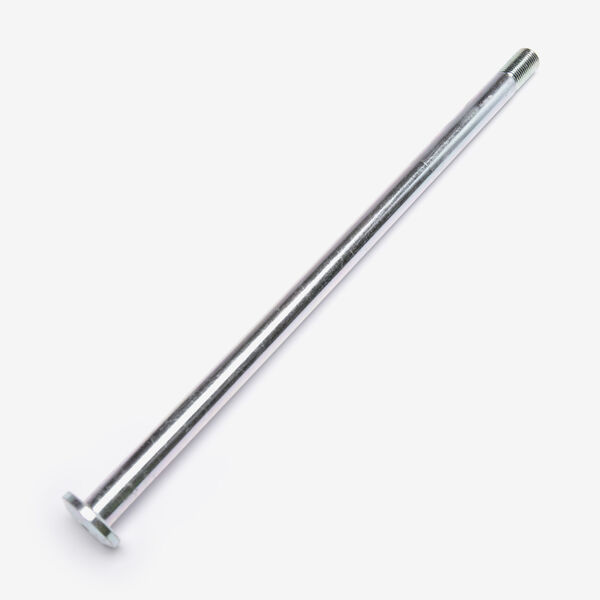

Spindle 20 x 220mm SPND170 x 1
|
||
| 9 | |
Engine Spacer 15 x 16.4mm CLPR033 x 1
|
||
| 10 | |
Drive belt HTD-560-8m-16 DB081 x 1
|
||
| 11 | |
Motor Assembly MTR013 x 1
|
||
| 12 | |
Bolt DIN M8 x 25mm BLT804 x 1
|
||
| 13 | |
Hall Effect Sensor HEFS003 x 1
|
||
| 14 | |
Talaria Emblem STCKR283 x 1
|
||
| 16 | |
Motor Spacer 15 x 18mm INDS005 x 1
|
||
| 17 | |
Washer 20 x 2mm WSH0094 x 1
|
||
| 18 | |
Round Nut (GB 812-1988) M10 x 1 (torque 30-32N.m) NUT216 x 1
|
||
| 19 | |
Motorcycle Drive Chain (O-Ring) 420-102 Links CHN113 x 1
|
||
| 20 | |
Talaria Jack Shaft removal Tool Talaria X3 Concept TLKT044 x 1
|
Compatibility
| Manufacturer | Model |
|---|---|
| Talaria | X3 MX L1e [TL25-V2] |
| X3 MX [TL2500] | |
| X3 MX [TL2500-V2] | |
| X3 Road Legal [TL25] | |
